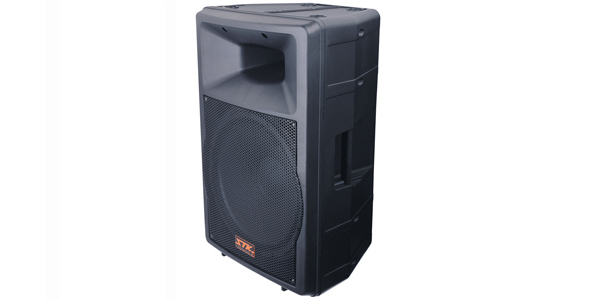

Especially designed for multi media-use, it is necessary to have a simple, flexible and complete system here the SPM152AP presents its unique advantages.
The internal 300W amplifier module is has been designed for 20 years with dependable service experience and the mix section includes one for microphone channel and dual bridging CD/AUX input channel. The enclosure descriptions equivalent to unpowered SPM152H.
- 2-Way full-range system.
- Mixing control board built-in(Mic,Line Input with 3 band equailzer)
- Built-in constant direct-loaded Horn.
- The one 2¡± inch exit compression drivers on a loaded Horn with molded enclosure.
- The internal crossover network frequency is 2kHz and 12dB/Octave.
- Impact-resistant perforated steel grill.
- Integral stand-mount adapter and carrying handle.
- Flying eyebolt mounting points in the top and bottom.
- 35mm pole mount receptacle on the bottom.
|
|
| |
| SPECIFICATIONS |
 |
|
|
| Model |
SPM-152AP |
| ENCLOSURE SPECIFICATION |
|
| System configuration |
2-Way Full Range |
| Components & Loading |
One SK15300 15¡± woofer, vented |
| Operating Mode |
Active |
| Frequency Response |
|
| ¡¾3 dB |
54Hz ~ 19kHz |
| -10 dB |
43Hz ~ 20kHz |
| Axial Sensitivity(dB SPL, 1 watt @ 1m) |
98 |
| Impedance(ohms) |
8 |
| Power Handling(Watts, Continuius) |
300W |
| Power Handling(Watts, Peak) |
1200W |
| Calculated SPL Limit(Referenced to 1 m) |
|
| Peak |
129dB |
| Long Term |
126dB |
| Norminal Dispersion(degree@-6dB) |
|
| Horizontal |
65 ¡Æ |
| Vertical |
65 ¡Æ |
| Optional Accessries 1 |
STK Pole "SPM35130" |
| Optional Accessries 2 |
STK Eyebolt "SEB08" |
Demensions
( ¡¾0.13 inch / ¡¾3 mm) |
Height 700
Front width 452
Rear width 253
Depth 348 |
| Trapezoid angle(degrees) |
|
| Shipping/CBM |
0.1452 |
| Net weight |
26.79kg |
| Shipping weight |
27.4 kg |
| AMPLIFIER SPECIFICATION |
|
| Output Power |
|
| 8 ohm |
300W |
Frequency Response
|
20Hz ~ 30kHz |
| THD 20Hz~30kHz |
¡Â0.05% |
| Hum & Noise |
¡Ã70 dB |
| Input Sensitivity |
MIC: -50dBu
CD/TAPE: 0 dBu
LINE: -10 dBu |
| Equalizer(+/-12dB) |
High: 10 kHz
Mid: 2.5 kHz
Low: 100 Hz |
| Damping Factor |
¡Ã200 |
| Input impedance |
1k ohm (Balanced XLR) |

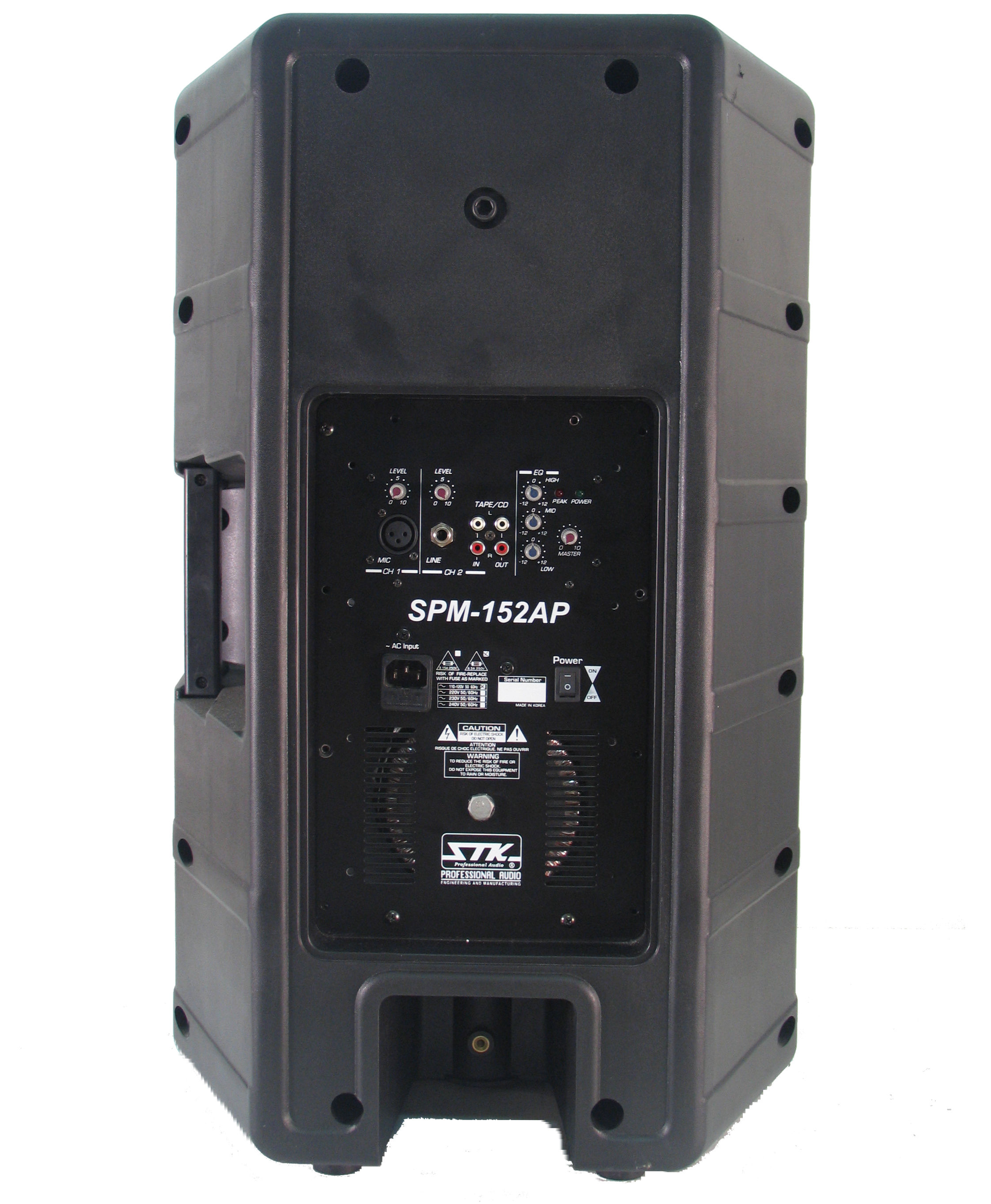

| Connectors Input |
XLR, 1/4"TRS, Stereo RCA |
| Connector output |
XLR/TS 1/4" Phone(Line out) |
| Power Requirements |
518 Watts |
| Special Features |
1. Peak LED, Power LED
2. Convenction Cooling
3. Largest power supply capacitance |
|
| *Specifications subject to change without notice. |
|
|
|
|
|
|
|
|
|
