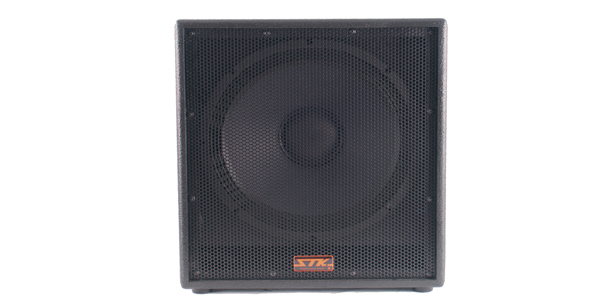

The 1812AP is a compact, dual powered, one 18”± subwoofer, bass-reflex rectangular enclosure, designed for portable systems an a dual channel STK digital power amplifier(very light weight) with active X-over is incorporated into the system.
The one power outputs didicated to powering internal 18”± SK18600S woofer, the other one power outputs may be used in of two ways(see to the bellow drawing)
|
- Dedicated subwoofer system and full range active systems.
- The enclosure construction: ”°STK Standard”±
- Ultra tough, the scratch proof warnex texture coated
- Two side handles one on each side for easy repositioning.
- Impact-resistant perforated metal grill(1.5mm)with weather proof powder coated.
- 35mm pole mount receptable on the top.
- ”°SCP”± STK caster, ”°SPM”± STK pole option.
|
 |
|
| |
| SPECIFICATIONS |
 |
|
|
| Model |
SP-1812AP |
| ENCLOSURE SPECIFICATION |
|
| System configuration |
Powered Subwoofer |
| Components & Loading |
One SK18600 18”±, Bass-reflex |
| Operating Mode |
Active |
| Frequency Response |
|
| ”¾3 dB |
40Hz ~ 300Hz |
| -10 dB |
35Hz ~ 300Hz |
| Axial Sensitivity(dB SPL, 1 watt @ 1m) |
100 |
| Nominal Input Impedance(ohm) |
4 |
| Power Handling(Watts, Continuius) |
600 |
| Power Handling(Watts, Peak) |
2400 |
Calculated SPL Limit
(Referenced to 1 m) |
|
| Peak |
133 |
| Long Term |
128 |
| Optional Accessries 1 |
STK Caster "SCP80" or "SCP100" |
| Optional Accessries 2 |
STK Pole "SPM35130" |
Demensions
( ”¾0.13 inch / ”¾3 mm) |
Height 640 |
| Front width 568 |
| Depth 595 |
| Trapezoid angle(degrees) |
|
| Shipping/CBM |
0.3188 |
| Net weight |
49.9 kg |
| Shipping weight |
65.7 kg |
| AMPLIFIER SPECIFICATION |
|
| Output Power |
|
| 4 ohm |
600W x 2 (Internal In, External In) |
| 8 ohm |
390W x 2 (Internal In, External In) |
| Frequency Response |
20Hz ~ 40kHz |
| THD 20Hz ~ 30 kHz |
0.05% |
| Hum & Noise |
105dB |
| Input Sensitivity |
+4dBm(1.23V) |
| Damping Factor |
£¾300 |
| Crossover Frequency |
1. 90Hz 24dB/Oct
2. 120Hz 24dB/Oct |
| Low cut Filter |
30Hz 12dB/Oct |
| Input impedance |
10k ohm (Balanced XLR) |
| Connectors Input |
2 x Female XLR |
| Connector output |
1. 2 x Male XLR(Mixer out)
2. 1 x Neutrik type speakon |
| Power Requirements |
1600 Watts |
| Special Features |
1. Sig LED, Cilp LED, PRT LED
2. Digital Power
3. Variable speed fan
4. Low Distortion AB class
5. 7 Way Full Circuit Protection
6.AC Out Let for Satellite Active Speaker |
|
| *Specifications subject to change without notice. |
|
|
|
|
|
|
|
|
|
