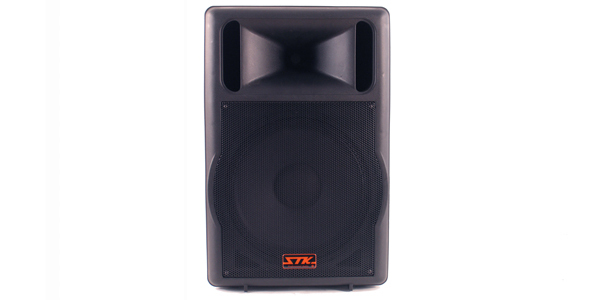

PowerFull,131dB SPL !!
The 500Watts RMS of high efficent integrated Power delivered to internal 500Watt 15" transducers.
Especially designed for multi media-use, it is necessary to have a simple, flexible, enough to use anywhere with capability and complete system here the SPM155AP presents its unique advantages.
The mix section includes one for microphone channel and dual bridging CD/AUX input channel.
The enclosures are trapezoidal in shape and easily stack
- 2-Way full-range system.
- Mixing control board Built-in(Mic,Line Input with 3 band equailzer).
- The one 2¡± inch exit compression drivers on a loaded Horn with molded enclosure
- The internal crossover network frequency is 2kHz and 12dB/Octave.
- The STK "CIRCUIT PRO" protects to HF Driver from accidental overload
- Impact-resistant perforated steel grill.
- Integral stand-mount adapter and carrying handle.
- Flying eyebolt mounting points in the top and bottom.
- 35mm pole mount receptacle on the bottom.
|
|
| |
| SPECIFICATIONS |
 |
|
|
| Model |
SPM-155AP |
| ENCLOSURE SPECIFICATION |
|
| System configuration |
2-Way Full Range |
| LF Components & Loading |
One SK15500 15¡± woofer, vented |
| HF Components & Loading |
One 2 inch voice coil compression driver |
| Operating Mode |
Active |
| Frequency Response |
|
| ¡¾3 dB |
54Hz ~ 19kHz |
| -10 dB |
43Hz ~ 20Hz |
| Axial Sensitivity(dB SPL, 1 watt @ 1m) |
101 |
| Impedance(ohms) |
8 |
| Power Handling(Watts, Continuius) |
500W |
| Power Handling(Watts, Peak) |
2000W |
| Calculated SPL Limit(Referenced to 1 m) |
|
| Peak |
134dB |
| Long Term |
131dB |
| Norminal Dispersion(degree@-6dB) |
|
| Horizontal |
65 ¡Æ |
| Vertical |
65 ¡Æ |
| Optional Accessries 1 |
STK Pole "SPM35130" |
| Optional Accessries 2 |
STK Eyebolt "SEB08" |
| Optional Accessries 3 |
STK Stand "ST6180" |
Demensions
( ¡¾0.13 inch / ¡¾3 mm) |
Height 700
Front width 452
Rear width 253
Depth 348 |
| Shipping/CBM |
0.1452 |
| Net weight |
28.1kg |
| Shipping weight |
30.3 kg |
| AMPLIFIER SPECIFICATION |
|
| Output Power |
|
| 8 ohm |
500W |
Frequency Response
|
20Hz ~ 30kHz |
| THD 20Hz~30kHz |
¡Â0.05% |
| Hum & Noise |
¡Ã70 dB |
| Input Sensitivity |
MIC: -50dBu
CD/TAPE: 0 dBu
LINE: -10 dBu |
| Equalizer(+/-12dB) |
High: 10 kHz
Mid: 2.5 kHz
Low: 100 Hz |
| Damping Factor |
¡Ã300 |
| Input impedance |
1k ohm (Balanced XLR) |
| Connectors Input |
XLR, 1/4"TRS, Stereo RCA |
| Connector output |
XLR/TS 1/4" Phone(Line out) |
| Power Requirements |
720 Watts |
| Special Features |
1. Peak LED, Power LED
2. Variable speed Fan
3. Largest power supply capacitance
4. Thermal and full circuit protections. |
|
| *Specifications subject to change without notice. |
|
|
|
|
|
|
|
|
|
