DC-10

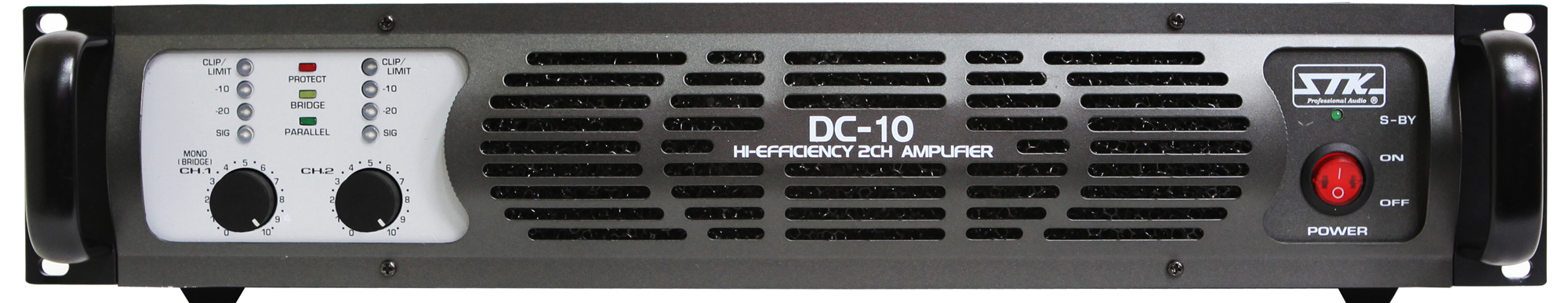

Front View / Rear View

Manual / Dimensions

The STK new DC series AMPLIFIERS ARE PROFESSIONAL TOOS DESIGNED WITH FULL DIGITAL TECHNOLOGIES.
Have high efficiency output design with the universal switch-mode power supply that reduced weight while increasing power outputs.
The class-D amplifier topology is very efficient,making the DC series amps small and light. Products benefit from the proven best reliability STK VS series digital power supply.
The DC amplifiers power levels are matched to the most popular passive speaker systems.

FRONT Descriptions

Soft Start Power On/Off Switch with power LED.
Stand By Green LED.
Linear type Input Level Attenuators.
3 steps Bar Graph Level Meter with Clip/Limit Indicator.
Red LED Protect Indicator for HF protection with 7 way Mode(see to specification page).
Mono/Bridge Mode Indicator.
Parallel Mode Indicator.
Artistic Ventilation Grill for Automatic Speed Fan.

REAR Descriptions

Electronic XLR Balanced Input Connectors.
XLR Balanced Through output Connectors.
Mono Bridge Mode Select Switch.
Parallel Input connection Select Switch.
0dBu or +4dBu or +7dBu Input sensitivity Select Switch.
30Hz Low Cut Switch for Improves Bass Performance.
Speed Control Cooling FAN.
High Current Speakon Type Output Jacks.
IEC standard AC Mains Input Socket.

SPECIFICATIONS

Model	DC-10
Stereo Mode (both channel driven)	Continuous Average Output Per Channel
Maximimum output Power	Ch1	Ch2
8 ohm/Stereo	330W	330W
4 ohm/Stereo	500W	500W
Continuous Sine Wave @ THD+N=0.1%,f= 1KHz
8 ohm/Stereo	300W	300W
4 ohm/Stereo	450W	450W
Bridge Mono Mode(both channel driven)	Ch1	Ch2
8 ohm/Stereo	1000W
Power Bandwidth (Ref. 1kHz, THD+N=0.1%,+0/-1dB)	20Hz~20kHz
THD+N (Ref. 1kHz,f=20Hz~20kHz)	≤0.05%
Frequency Response (Ref. 1kHz, 1watt output, +0/-1dB)	20Hz~20kHz
Crosstalk (RL=8Ω, Half power, Att.Max 600Ω shunt)	≥63dB, 1kHz
Signal To Noise Ratio (Filter : A-Weighting, RMS)	≥100 dB
Damping factor (RL=8Ω , f=KHz)	≥200
Input Sensitivity
8 ohm/Stereo	Up to +2.1 dBu from 4 Ω/Stereo Input
4 ohm/Stereo	+0 OR +4.0 OR +7.0 dBu By Select Switch
Voltage Gain (ATT.max)	35.22dB
Output Circuitry	Class-D
Input Impedance	6kΩ(Unbalance), 12kΩ(Balance)
Controls
Front panel	AC Switch, CH1 and Ch2 gain control knobs
Rear panel	Low cut 30Hz Filter Output clip limiter, Sensitivity, ST/Mono Bridge, Parallel
Connectors
Input	Female XLR jack
Output	XLR Male jack (Input Through), Speakon jack
Indicators	Power (Green),Stan By (Green), Protect (Red), Clip (Red), Mono Bridge (Yellow),Parallel(Green),3 step Bar Graph In/Out Level
Protection Circuits	1)Short Circuits 2)Current Limit 3)DC detection 4)Thermal 5)Main Voltage Detect 6)Power supply shutdown 7)HF protection
Fan Circuit	Fans Variable Low speed(50℃), High speed(60℃)
Power Consumption (1/3 power)	375Watts
DIMENSION	480 X 88 X 380 (mm)
Shipipng Weight & Volume	10.00kg / 0.0662cbm

*0dB=0.775V
*Specifications Subject to change without notice.
