The V6 are powerful low frequency class AB output circuit.
The both amplifier has been designed for 20 years of dependable service technology.we gave the V6 is every advantage,value,price,features,versatility and our perfect warranty system.
- Ultra low noise
- FET control quiet power on/off muting circuit.
- Lowest in-rush Trodial Transformers.
- AC primary controlled full protection circuitry
- 600W(300W/per CH) at 4 ohm load
- 0.05% THD 20Hz~30kHz
- The front face, soft feeling rubber coated , 2U space.
|
|
| |
| SPECIFICATIONS |
 |
|
|
| Model |
V-6 |
|
| Stereo Mode (both channel driven) |
Continuous Average Output Per Channel |
| FTC @ THD+N=0.1%, f=20Hz~20kHz |
Ch1 |
Ch2 |
| 8 ohm/Stereo |
200W |
200W |
| 4 ohm/Stereo |
270W |
270W |
| 2 ohm/Stereo |
|
|
|
|
| EIA @ THD+1=1%, f=1kHz |
|
| 8 ohm/Stereo |
210W |
210W |
| 4 ohm/Stereo |
300W |
300W |
| 2 ohm/Stereo |
|
|
|
|
| Bridge Mono Mode |
550W |
| FTC @ THD+N=0.1%,f=1kHz |
|
| 8 ohm/Bridge |
|
| EIA @ THD+N=0.1%,f=1kHz |
600W |
Power Bandwidth
(Ref. 1kHz, THD+N=0.1%,+0/-1dB) |
20Hz~25kHz |
THD+N
(Ref. 1kHz,f=20Hz~20kHz) |
≤0.05% |
Frequency Response
(Ref. 1kHz, 1watt output, +0/-1.5dB) |
20Hz~35kHz |
IMD(SMPTE4:1)
(60Hz:7kHz, 4:1 Half power) |
|
| 4-8 ohm/Stereo |
≤0.1% |
| 2 ohm/Bridge |
|
Crosstalk
(RL=8Ω, Half power, Att.Max 600Ω shunt) |
≥90dB, 1 kHz |
Residual Noise
(20Hz~22kHz LPF,Att.min) |
≥76dB |
S/N Ratio
(Filter:A-Weighting, RMS) |
≥105dB |
Damping Factor
(RL=8Ω, f=1kHz) |
≥300 |
| Input Sensitivity (Att. max) |
|
| 4 ohm/Stereo |
+4.0 dBu |
| 8 ohm/Bridge |
+5.1 dBu |
| Voltage Gain(Att. max) |
28.5dB |
| Output Circuitry |
AB |
| Input Impedance |
10kΩ(Unbalance), 20kΩ(Balance) |
| Controls |
AC Switch,Ch1 and Ch2 gain Control knobs
Stereo/Mono Bridge Switch |

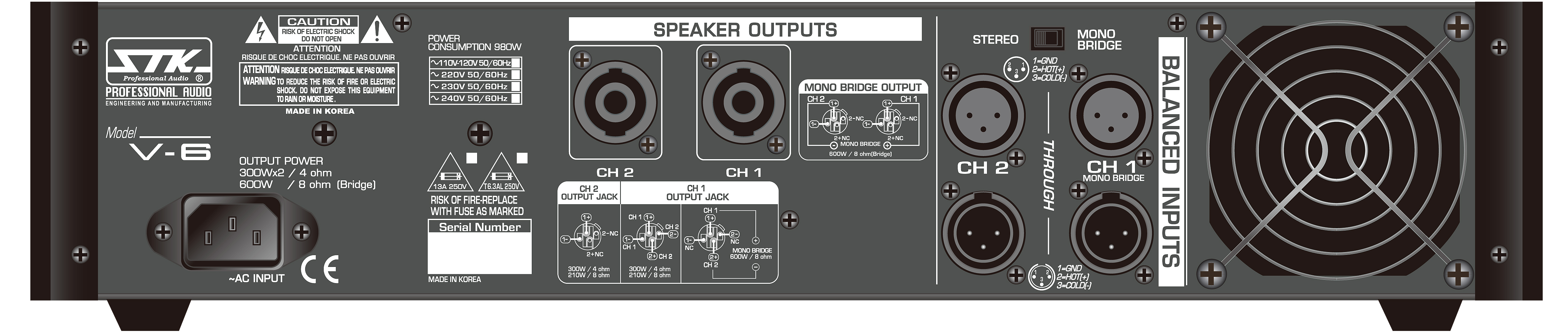

| Connectors |
XLR jack, 1/4" TRS jack
Touch-Proof binding posts, Speakon jack
|
| Indicators |
Power(Green),Protect(Red),Clip(Red),
Mon Bridge(Green) |
| Protection Circuits |
|
1)Short Circuits
2)Current Limit
3)DC detection
4)Thermal
5)Turn On/Off muting
6)AC Line fuse |
|
| Fan Circuit |
Single Fans Variable low Speed(50℃),
High speed(55℃) |
| Power Consumption |
980VA |
| DIMENSION |
480mm X 88mm X 407mm |
| Weight |
14.36 kg / 31.65 Ibs |
|
*0dB=0.775V
*Specifications Subject to change without notice. |
|
|
|
|
