| Model |

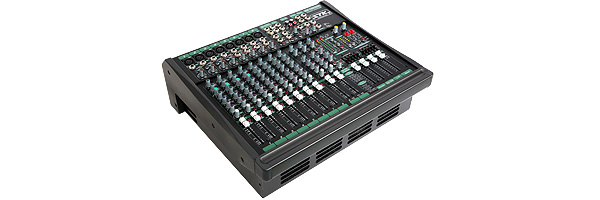

VM16S-DDR |
| Configuration |
|
| Power(EIA) |
|
| 4 ohm load per channel |
440W + 440W |
| 8 ohm load per channel |
300W + 300W |
| Rated Power(20-20kHz) |
|
| 4 ohm load |
430W + 430W |
| 8 ohm load |
290W + 290W |
Distortion
(THD & SMPTE IND; 20Hz to 20kHz) |
|
| Mic input to main mixes output |
0.01% |
| Mic input to power amp output |
0.05% |
Inputs
(all 1/4�� TRS are Bal./Unbal.except*) |
|
| Mono mic/line |
8 (XLR and TRS1/4") |
| Stereo line |
2(left/mono) + 2(Right) |
| CH Insert |
TRS 1/4" |
| Tape |
Stereo RCA |
| Stereo Line(Utility) |
2(1&2 Left) + 2(1&2 Right) |
| Amp in |
1 TS 1/4" L, 1 TS 1/4" R |
Outputs
(all 1/4�� TRS are Bal./Unbal.except*) |
|
| Main L/R Stereo |
Dual TRS 1/4�� |
| Main Mono(Subwoofer) |
1 TRS 1/4�� |
| Aux Sends |
Dual TRS 1/4�� |
| Tape L/R Stereo |
Stereo RCA |
| Phones |
TRS 1/4�� |

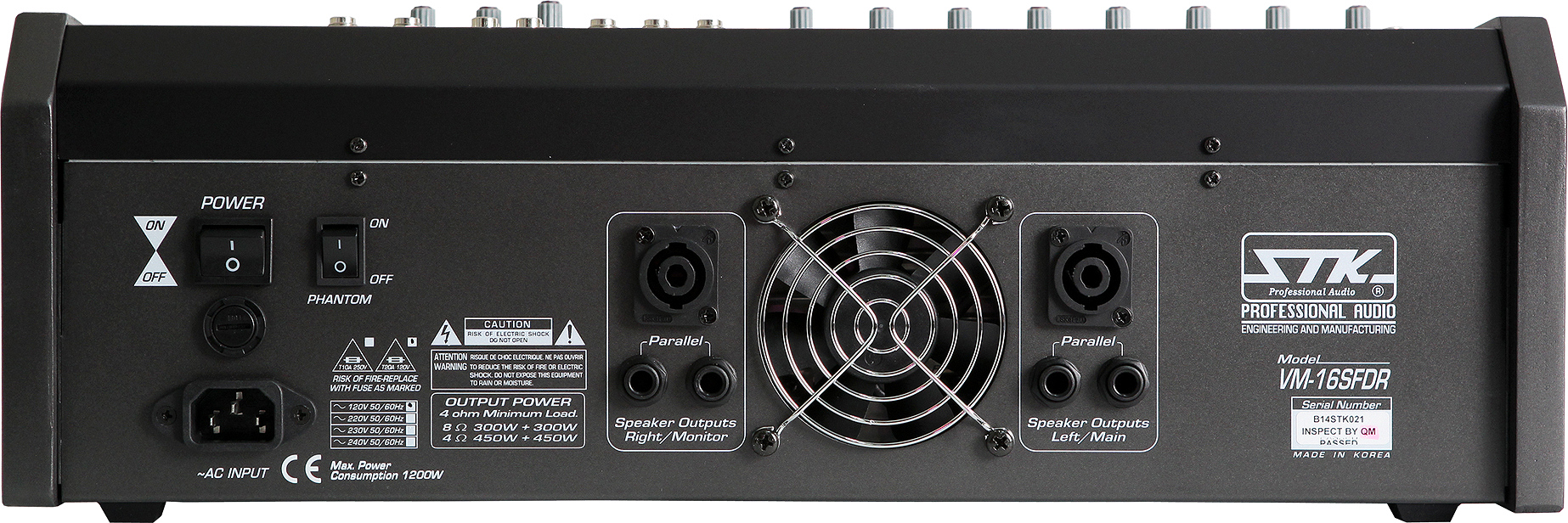

| Speaker Outputs |
TS 1/4" /Speakon |
| Channel Strips |
|
| Aux controls |
1 + 1 EFX + 1 Mon |
| Constant Loudness pan control |
Yes |
| Channel solo with metering |
Yes |
| LED indicators |
Peak |
| Volume controls |
60 mm Faders |
| Master Section |
|
| Digi EFX |
Dual Variable |
| Reverb Control |
1 Time Pot(0.5~10 sec)+1 Level Pot |
| Delay Control |
1 Time Pot (50~1000 msec)+1 Level Pot |
| Repeat Control |
1 Delay Feedback Pot(0-90%) |
| Program |
Delay/Echo, Delay Cross F.B, Delay 3 Tap Pan, Delay One Short, Reverb HALL, Reverb Room, Reverb PLATE, Reverb AMBIENT |
| Digi EFX Control |
On/Off, LED Level Set |
| Digi EFX Buss Control |
1 Mon + 1 Main |
| 5 Band Graphic Equalizer |
1 Left + 1 Right |
| Power AMP Routing |
Yes |
| Foot Pedal EFX Jack |
Yes |
| Amp In Level Control |
Yes |
| Tape In Level Control |
Yes |
| Global AFL/PFL Solo Mode |
Yes |
| Aux/Monitor Send Master |
60 mm Faders |
| Main Mix Volume |
60 mm Faders |
| Mono Master |
60 mm Faders |
| Noise |
|
| Master Gains@Unity, CH.gains Down |
87dB |
| Master Gains@Unity, CH.gains@Unity |
85dB |
| Signal to Noise Ratio |
��97dB |
| Crosstalk |
|
| Adjacent inputs or input to output |
-90 dB |
| Frequency Response |
|
| 20Hz to 40kHz(Mic Pre Section) |
+0, -1dB |
| 20Hz to 30kHz(Power Amp Section) |
+0, -1dB |
| Maximum Levels |
|
| Mic Preamp Input |
+14 dBu |
| Power amp in |
+22dBu |
| All Other inputs |
+20 dBu |
| Impedances |
|
| Mic Preamp Input |
4k Bal |
| All Other input |
10k |
| Line Input |
4k |
| Equalization |
3 Band Mid Sweep & 4 band fixed |
| Low EQ(��15dB) |
80Hz��15dB |
| Mid EQ(��12dB) |
100Hz-8kHz��12dB & fixed 800Hz,3KHz |
| Hi EQ(��15dB) |
12kHz��15dB |
| Low-Cut Filter |
18dB/Oct 75Hz |
| Micriphone Preamp E.I.N.5 |
-128 dBm |
| Power Requirements |
1200 Watts |
| Dimension(WxHxD) |
515 x 146 x 405 |
| Shipping/CBM |
0.0621 |
| Net Weight |
19.5 kg |
| Shipping Weight |
20.8 kg |
